Shengpu Tooling manufactures custom press brake bridge die solutions for sheet metal panels that require raised corrugated ribs, U-shaped stiffening ribs, and stronger surface structure.

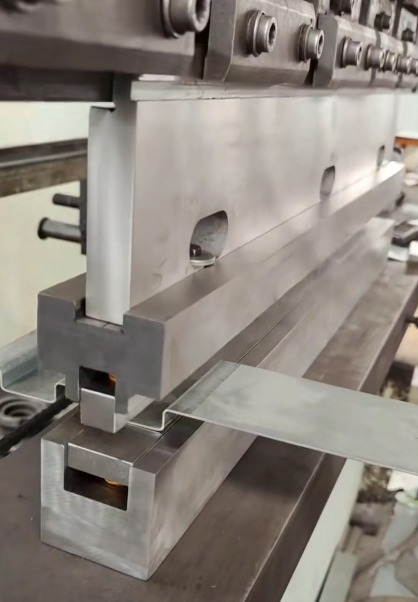

Unlike ordinary press brake tools used for 90-degree bending, a press brake bridge die is designed to form raised ribs on the flat area of the sheet metal. The upper and lower dies have a bridge-style hollow structure, allowing the tooling to form the rib without pressing the entire flat surface.
Product Function
A corrugated forming die helps create continuous U-shaped ribs by feeding the sheet metal through the press brake step by step. This structure can improve panel strength, reduce flexing, and create a uniform ribbed appearance.
It is especially useful for long panels where strength and appearance are both important.
Suitable Applications
Our press brake bridge die can be used for:
Truck body panels
Machine cabinets
Electrical enclosures
Equipment covers
Decorative wall panels
Long sheet metal panels
U-shaped stiffening ribs
Corrugated sheet metal forming
Custom Design Parameters
To design the right bridge die, we usually check:
Material thickness
Panel length
Rib height
Rib width
Rib spacing
Forming direction
Press brake model
Machine clamping system
Required production quantity
Why Choose Shengpu Tooling
Shengpu Tooling focuses on custom press brake tooling for non-standard sheet metal forming. We manufacture press brake bridge dies, corrugated forming dies, upper punches, lower dies, radius dies, offset dies, hemming dies, louver dies, hinge dies, and other special-shaped tooling.
Our team can design tooling based on your drawing, sample photo, material thickness, rib size, and production requirements.
Get a Custom Solution
If your sheet metal panel needs corrugated ribs or U-shaped stiffening ribs, send us your drawing and forming requirements.
Shengpu Tooling will help review your product structure and provide a suitable custom tooling solution.
