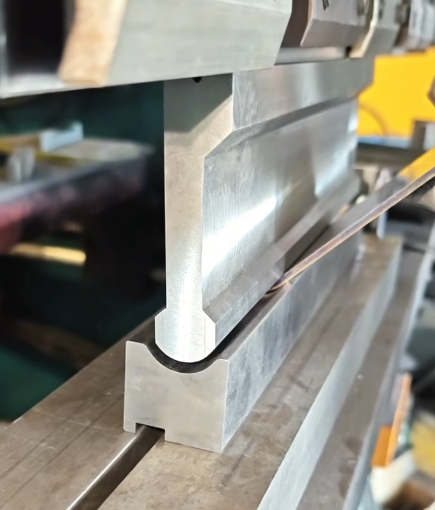

Radius Punch and Radius Die
Radius punch and radius die tooling is designed for sheet metal parts that require smooth large radius bending instead of sharp angle forming.
When standard press brake punches and dies cause cracking, heavy press marks, unstable angles, or uneven curved shapes, a custom radius punch and radius die set can help improve bending quality and production consistency.
Custom Tooling for Smooth Radius Bending
Shengpu Tooling manufactures radius punch and radius die solutions according to your product drawing, material thickness, bending angle, required inside radius, workpiece length, and press brake clamping system.
By using the correct punch radius and matching lower die structure, the sheet metal can be formed more smoothly with better surface protection and more stable bending results.
Suitable Applications
Our radius punch and radius die tooling can be used for:
Large radius bends
Smooth curved sheet metal parts
Covers and panels
Cabinets and enclosures
Decorative metal components
Aluminum and stainless steel parts
Non-standard bending applications
Custom sheet metal forming parts
Common Problems It Can Help Solve
A properly designed radius punch and radius die can help reduce:
Cracks in the bending area
Deep press marks on the workpiece
Unstable bending angles
Uneven radius shape
Poor repeatability in batch production
Tooling mismatch with the drawing
Excessive machine adjustment time
Compatible Press Brake Applications
Shengpu Tooling can customize radius punch and radius die tooling for different sheet metal press brake applications, including standard press brake machines, electric sheet metal brake systems, mini press brake machines, and bending brake machine setups.
We can also design tooling based on different clamping systems and customer production requirements.
Why Choose Shengpu Tooling
Shengpu Tooling focuses on custom press brake tooling for sheet metal bending. We manufacture press brake punches, press brake dies, special-shaped tooling, large radius dies, offset bending dies, gooseneck punches, hemming tools, and other custom bending solutions.
Our team can help customers evaluate whether a radius punch and radius die are suitable for their product before production, reducing trial-and-error and improving bending stability.
Custom Radius Tooling Solution
If your current tooling cannot achieve smooth large radius bending, send us your drawing, sample photo, material thickness, bending angle, and machine information.
Shengpu Tooling will help review your requirement and provide a suitable custom tooling solution.
