Custom Punches, Dies, and Press Brake Tooling Solutions
Press Brake Tooling Manufacturer | Custom Press Brake Tooling (Punches & Dies)
We are a professional and reliable manufacturer of press brake tooling, specializing in the design, production, and customization of high-precision tools. Backed by rigorous quality control systems and mature manufacturing processes, we provide global clients with durable, high-precision, and cost-effective custom tooling solutions, as well as standard tools to meet diverse industrial sheet metal bending needs.
Our factory is equipped with imported CNC machines and WEDM equipment, operated by experienced technicians. We achieve cavity and edge accuracy of ±0.02mm and angle tolerance within ±0.1°. With laser marking, shot blasting, and black oxide treatment, our products offer excellent traceability, wear resistance, and corrosion resistance.
Over 60% of our products are exported to more than 30 countries and regions, serving industries such as automotive parts and medical device manufacturing.
Our products are widely used in sheet metal bending, forming, hemming, and offset bending applications, and are perfectly compatible with all mainstream press brake equipment.
Tooling Product Types
- Press Brake Punches (Upper Tools): A comprehensive range of specifications, including straight punches, gooseneck punches, acute angle punches, and specialized custom punches, suitable for both standard and special-angle bending operations.
- Press Brake Dies (Lower Tools): Includes standard V-dies, multi-V dies, deep-groove dies, and flat dies, meeting processing requirements for various sheet metal thicknesses and bending radii.

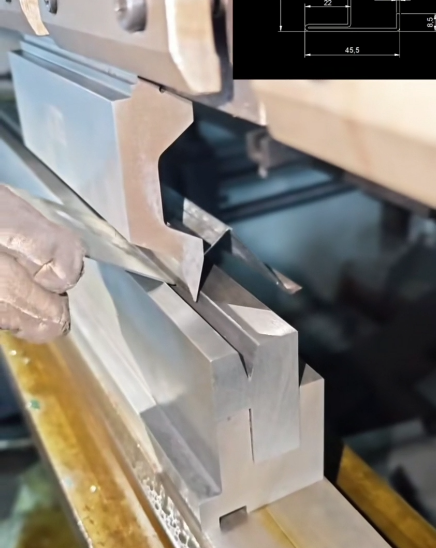

- Hemming Tools: Specialized tools for sheet metal hemming, flattening, and edge folding, ensuring smooth, burr-free edges on finished workpieces.
- Offset Bending Tools: Specialized forming tools for offset and step bending, capable of handling complex offset forming challenges.
- American-Style Tooling: Standard American-series tooling featuring uniform specifications, high versatility, and easy installation/replacement; compatible with all American-standard press brake equipment. – Upper Die (Punch): Mounted on the ram; descends to form the material; available in various styles; determines the bending angle and radius (R-angle).
- Lower Die (Die/Female Die): Fixed to the worktable; features a V-groove to support the sheet metal; influences bending tonnage and springback control.
- Flattening Die: Used in pairs to flatten hemmed edges, ensuring a smooth, burr-free finish on the workpiece edge.

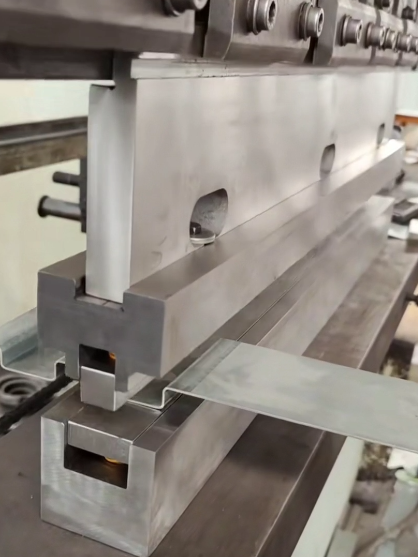

- Offset (Z-Bend) Die: Forms a Z-shaped step in a single operation, eliminating the need for multiple bends when creating parts with height differences.
- Radius Die (R-Die): Features a radiused working surface for bending large-radius curves without leaving pressure marks on the sheet metal surface.
- Gooseneck Die: Designed with a recessed neck to provide clearance; ideal for bending box-shaped or U-shaped parts while preventing interference between the finished workpiece and the tool.

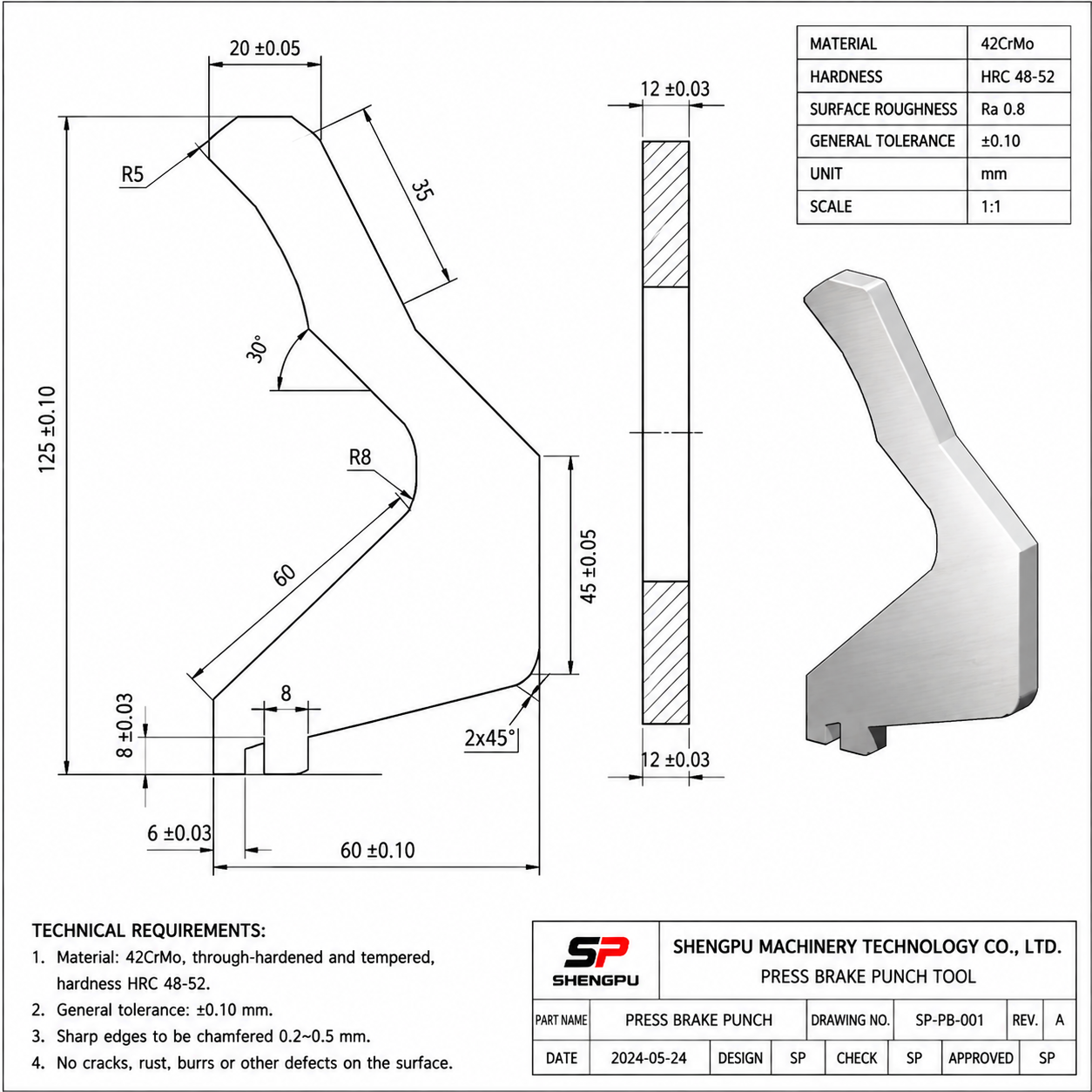

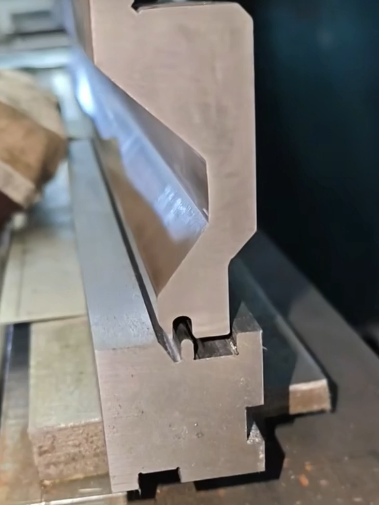

- Special Profile Die: Custom-engineered for non-standard applications; forms complex contours in a single pass, reducing the number of bending steps required.
Professional Custom Tooling Services
We offer comprehensive, personalized customization for press brake tooling, flexibly adapting to specific processing needs and equipment specifications. Production is strictly tailored to unique customer requirements:
- Customization based on customer-provided engineering drawings
- Tailored material selection (options include high-speed steel, alloy steel, carbon steel, etc.)
- Custom bending angles, radii, and tool geometries/profiles
- Custom tool lengths and overall dimensions
- Compatibility with various press brake models; custom tooling designed specifically for your equipment
Our technical team verifies the feasibility of every custom design and optimizes the tool structure based on the specific application environment, ensuring stable performance, high bending precision, and excellent compatibility. Customers We Serve
Sheet Metal Fabricators
Tooling for daily production, new part development, and various bending applications.
Press Brake Users
Replacement tooling and custom profiles for existing equipment.
Equipment Service Companies
Tooling support for machine maintenance, repairs, and retrofit projects.
Tooling Distributors
Supply of standard and custom tooling to meet end-customer requirements.
Request a Quote
Please submit your drawings and specifications to receive a quote. To help us confirm the tooling specifications, please include:
Part or tooling drawings
Required dimensions, tooling length, and bending angle
Workpiece material and sheet thickness
Tooling material requirements (if specified)
Required quantity
Press brake make, model, and clamping details
If drawings are unavailable, please send photos of the existing tooling along with key dimensions and machine details.
Contact Shengpu Tooling
Are you looking for a manufacturer of standard or custom press brake tooling?
Please send us your drawings, dimensions, material specifications, and quantity requirements. Shengpu Tooling will assist you in determining the right tooling solution.
WhatsApp Business: +86 15155556086
Email: leah@sinobend.com
Website: shengputooling.com
Written by Shengpu Tooling Team
